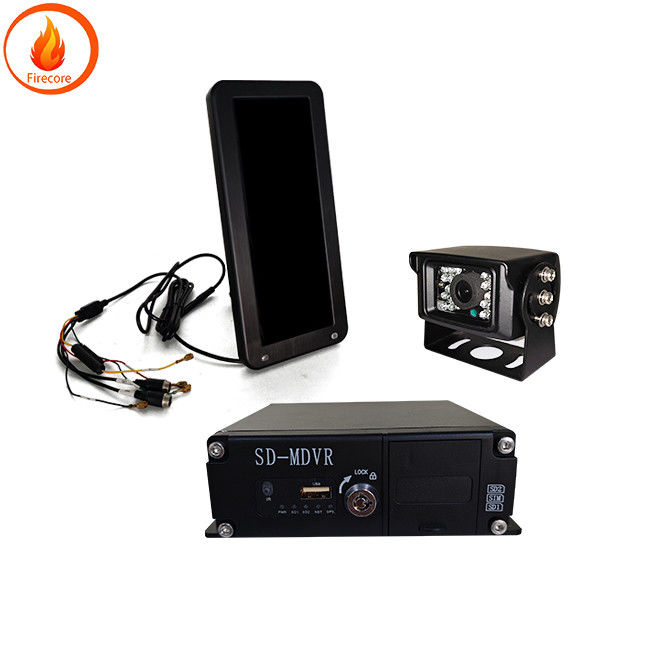

720P HD カー DVR 12.3 インチ 車両ディスプレイ 乗用監視システム

車両カメラモニタリングシステム 12.3インチディスプレイ搭載モニタリングシステム

製品パラメータ:
表示:
1 サイズ: 12. 3 "
2,解像度: 1920 * 720P
3 バックライト: LEDの明るさ: 850cd / m2
4 対比: 800: 1
5 展望範囲: 上 85度 下 85度
6.電源: DC9 - 36V
7, OSD コントロール: ビデオ再生 ビデオ設定 画面設定 言語選択 逆設定 システム設定
8 パワー5W
信号入力: 720P / 960P / 1080P / CVBS混合入力
10 ファイル形式: AVI / JPG
メモリ: TFカード 256GB をサポート
12 ビデオ圧縮: H.264
記録解像度: 720P/960P/1080P/CVBS
14 システム言語: 中国語 英語
画面: 単画面 / 双画面 / 5: 5 / 6: 4 / 7: 3 CHI CH2 1080P を同時に表示する操作
16 トリガー制御: 1 方向 トリガー
ビデオ形式: PAL/NTSC自動スイッチ
HDカメラ:
解像度: AHD 720P / 960P/1080P
横幅 広角: 90 - 150
防水級:IP68

我々は,研究開発生産と車両モニタリングのプロメーカーです

車用ビデオレコーダー 車用カメラ 車用USBカメラ 車用USBカメラ

メールでご連絡ください:firecore1688@163.com

車両に搭載された遠隔監視端末
The vehicle mounted remote monitoring terminal  also known as the vehicle mounted DVR   adopts a professional vehicle mounted design that is suitable for automotive power supply and adopts high seismic resistance design   It combines mechanical shock absorption   electronic shock absorption   and software seismic resistance patents   and uses a removable ordinary 2.5 - inch hard drive    It has multiple modes of security monitoring and recording functions   manual   timed   alarm linkage    and fast and convenient query and playback modes  The product has a high - speed USB 2.0 interface and broadband network interface   which facilitates data backup   The vehicle mounted intelligent terminal can be used independently   and can also utilize the extended built - in GPS global positioning system and 3G communication module to construct a wireless video monitoring management system for remote scheduling management and real - time monitoring   As an extended application   in car DVR can also provide functions such as mileage and station name prompts   enriching operational applications   Mileage and station name prompts   in addition to the sound station announcement function   the onboard terminal also provides visual mileage and station name prompts  displaying the progress of the vehicle on the route through the display inside the vehicle   The main functions and architecture of the software platform   The onboard monitoring terminal can independently complete the video recording and recording monitoring function on the vehicle, and can also be expanded and configured into a system with wireless network monitoring and management   improving and enhancing the regulatory ability of the management department on vehicles   and providing more timely monitoring of key areas and routes

The line resembling the head penetrates into the car through the gap of the license plate light   and is connected to the power supply and video extension cable of the reversing light   This type of installation of reversing camera is a popular one nowadays   with a more concealed appearance and easier installation  Another method is to drill holes for installation and embed them into the interior of the bumper   The advantage of this method is that there is no need to drill holes on the metal parts behind the car   Because the bumper is made of plastic   the camera wiring is relatively easy    The third step is to connect the power cord of the camera to the power cord of the rear reversing light    then connect the video cord of the camera to the video extension cable    The other end of the video extension cable is connected to the AV input of the car DVD display    Finally   restore the battery power    start the car    engage reverse gear   and you can see the reverse image on the car display
