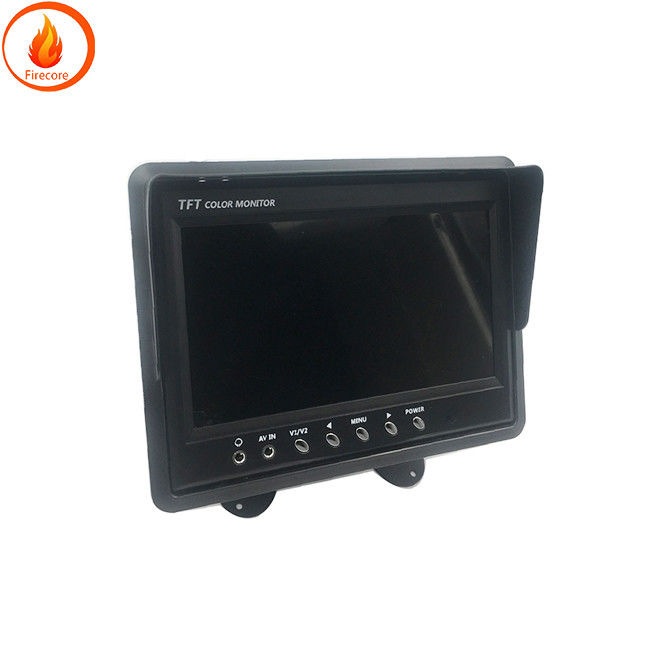

搭載車両カメラモニタリングシステム 7インチ VGAモニターディスプレイ

車両カメラモニタリングシステム 高解像度 7インチ VGAモニターディスプレイを搭載した車

我々は,研究開発生産と車両モニタリングのプロメーカーです

車用ビデオレコーダー 車用カメラ 車用USBカメラ 車用USBカメラ

メールでご連絡ください:firecore1688@163.com

製品名: 7インチ デスクトップディスプレイ 入力配置 2 つのビデオ入力 逆の優先
外観サイズ 174 * 114 * 20mm 言語 中国語 英語
7インチディスプレイ 遠隔操作モード
スクリーン比16: 9色標準PAL / NTSC自動スイッチ
解像度 800 * 480 待機温度 - 20 から + 75 度
リモコンは,リモコンの作業温度を - 10から + 50度Cまでサポートします.
定位電源約6W DC12 - 24V

The camera power ground wire and video ground wire are directly connected to the vehicle body  The above two methods can solve the problem by 99%   If there are still a few water ripples  you can refer to the next method and add RC or LC filtering circuits Add a filtering circuit (without adding a relay)   This method involves adding a filtering circuit to the power line of the reversing light   filtering the pulse power supply to form a DC power supply   and then supplying power to the camera   This can completely eliminate the interference of horizontal stripes on the screen

エディタを購入する

1 について  Chip CCD and CMOS chips are important components of the reverse camera   which can be divided into CCD and CMOS according to different components   CMOS is mainly used in products with lower image quality  Its advantages are lower manufacturing cost and power consumption compared to CCD   but its disadvantage is that CMOS cameras have higher requirements for light sources   CCD is a high - end technology component used in photography and videography    which also comes with a video capture card  CCD and CMOS have a significant difference in technology and performance    Generally speaking   CCD has better performance  but it is also more expensive   It is recommended to choose a CCD camera without considering the cost

2   Clarity is one of the important indicators for measuring cameras  Generally speaking   if the camera has high clarity   the quality of its image display will be better   How to choose a high - definition camera   It is recommended to judge based on the level of the camera chip   Generally    different chip levels    different photosensitive components    and the level of debugging technicians may result in different effects for products of the same chip and level   On the contrary    products with high clarity may have some discount on night vision effects  The reverse camera usually uses a number of lines to distinguish the clarity   such as 420 lines    480 lines   500 lines     580 lines   600 lines    etc

3 夜の視界の明晰度が高くなるほど the worse the night vision effect of the product   as the night vision effect is also related to  the clarity of the product   Generally   high - quality products have night vision function and will not affect the presentation effect   Generally   night vision refers to those with infrared or white LED lights    while those without infrared lights can only be said to have good low illumination and better imaging results under the same lighting conditions

4, 防水後戻りカメラは,一般的に,カメラをより良く保護し,後戻りカメラの寿命を延長できる防水機能を持っています

5, 衝撃や塵に耐える後戻りカメラの両方に衝撃や塵に耐える機能があります
